Fully Automatic Rigid Box Making Machine 20PCS/MIN Gift Box Making Machine

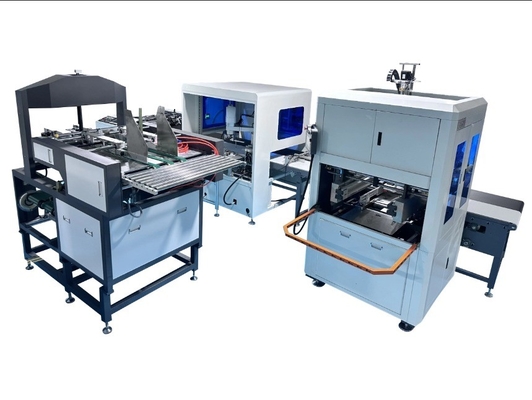

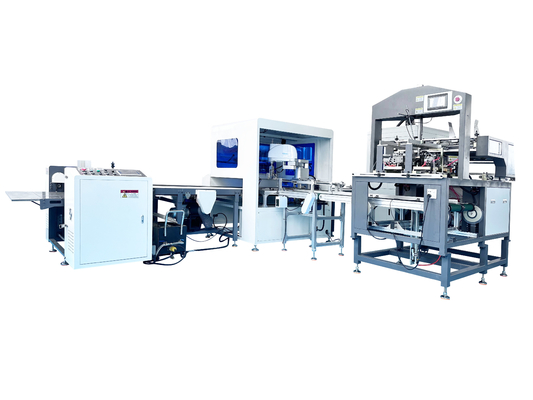

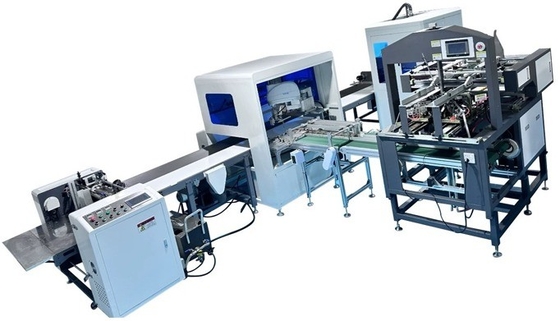

Fully automatic rigid box making line gift box producing machine

Introduction

         This equipment is wide used in paper sheets feeding, gluing and positioning for various hardcovers and   rigid   boxes and gift boxes, such as book hardcover, folding hardcover, jewelry box, cellphone box, wine box, cake box and cigarette box etc. Instruction 1. Feeder part adopts the specialized Cam structure, to avoid the double sheets or more sheets. 2. Gluing part adopts the circulatory gluing system, and high precision gluing rollers to ensure gluing wellproportioned. 3. Positioned unit adopts high-resolution industrial camera to calculate the position of paper sheet and positioning through robot which support ±0.2mm accuracy. This machine accepts to combine the extra rigid box making machines which can output automatically.

  product function

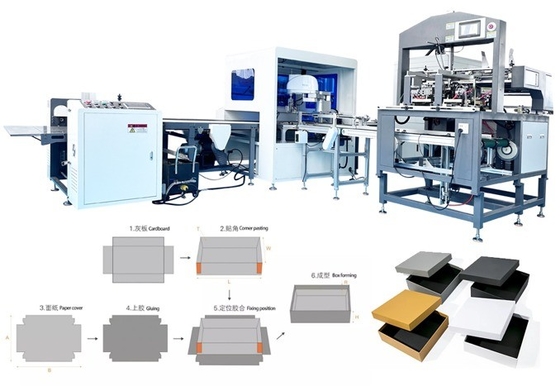

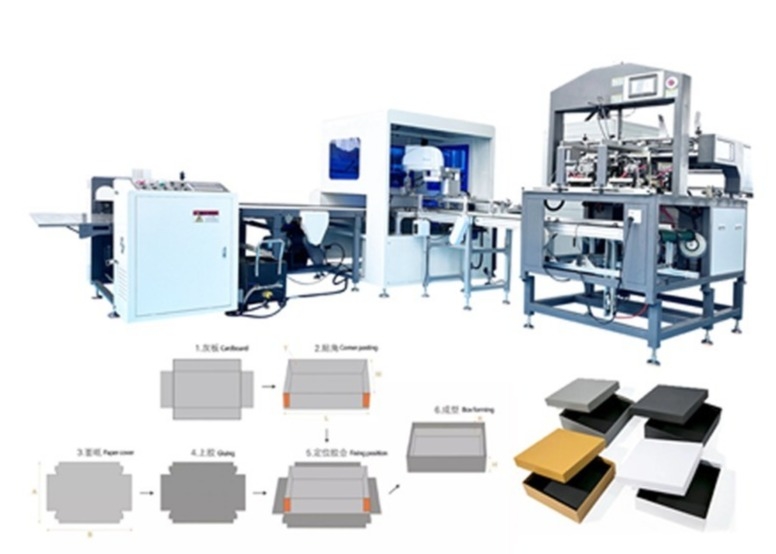

1:completion of fly-over paper feeding - gluing - feeding of the glue board - positioning - holding the box - edge wrapping - folding of the ears and folding into the shape.
2 The paper feeding part is independently driven by dual servo motors and has a microcomputer control system (patented independently), with a paper feeding station to ensure smoother paper feeding and effectively solve problems such as double-sided paper and scratches. It is suitable for various thickness paper automatic production lines.
3 Full computer function parameter setting, fault diagnosis function.
The fly-over paper feeding, gluing and conveyor belt use well-known brand servo drives, which can be adjusted continuously, with

high precision and easy adjustment, saving time.

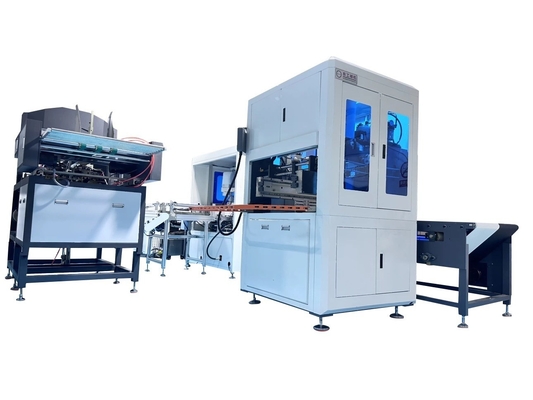

4The positioning part adopts image positioning system and robot grasping components to improve positioning accuracy and effciency. The error range can reach ±0.05mm, and the positioning and debugging speed is faster.
5 Stack-type visual connection corner pasting machine: Four-sided corner pasting, system controlled by a separate human-machine interface
6 The forming machine adopts automatic mold adjustment with full servo drive, a paper box automatic holding and taking device, which is more stable, wear-resistant and has smoother movements, and has a range of folding depth and ear length dimensions, with data storage function. The short ears can be interlocked or connected left and right, and can produce face paper slot
7 products, and complete edge wrapping and folding of the ears at one time, which is more suitable for the production of high-end paper boxes

8 Automatic glue viscosity control system(optional).
9 Super large stainless steel glue tank, fully enclosed glue circulation system, 24-hour preheating function, white glue and hot melt glue can

be used
