| Brand Name: | KINGPACK MACHINERY |
| Model Number: | DG-5012AFS |
| MOQ: | 1 |
| Price: | $16,666/sets >=1 sets |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10sets/month |

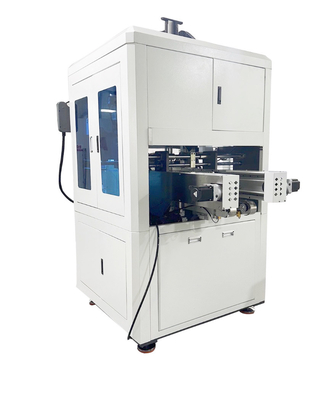

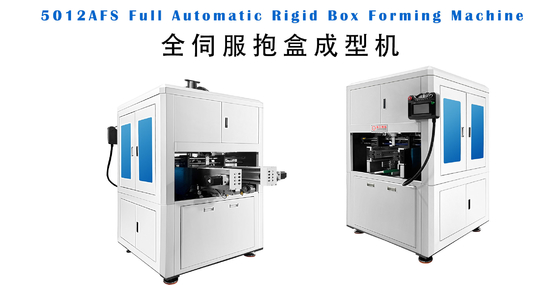

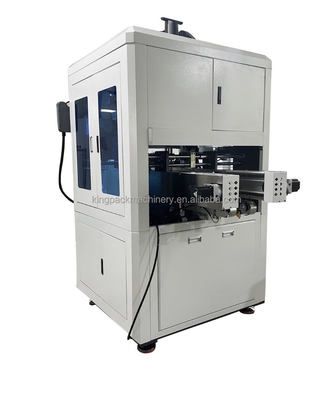

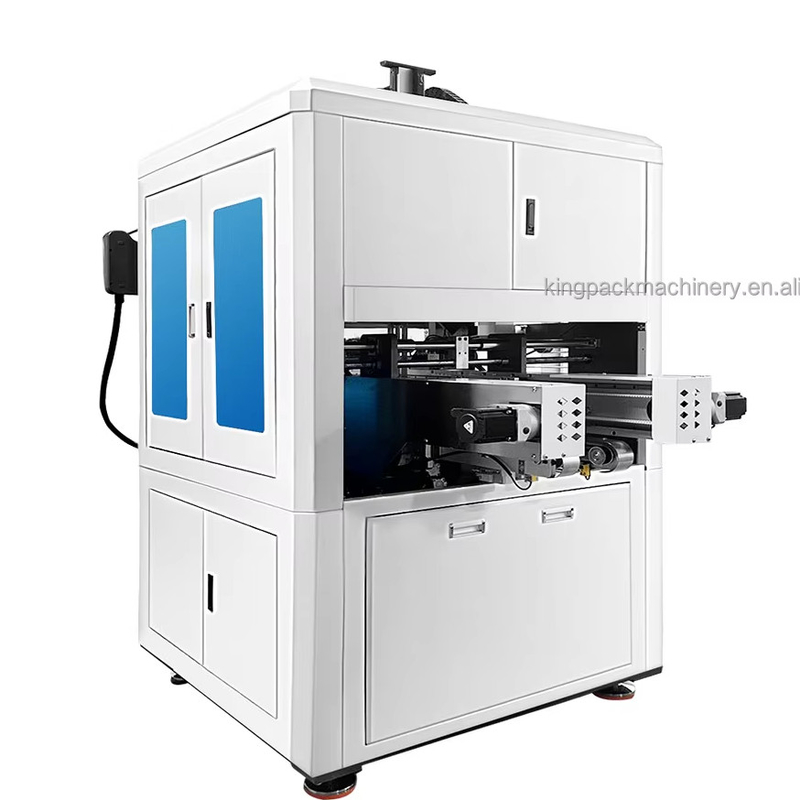

Fully Automatic Rigid Box Forming machine Programming rigid box wrapping machine
This machine is mainly working vith positioning machine to help customer to make the rigid box with No Labor!it is configured with automatic taking products system to finish the processes in folding, bubble pressing andbox wrapping.
This machine adopts programming system, it is with memory configuration to save the ordered box sizes and toset the machine automatically.
it is easy to operate, just according to the instructions of adjustment in touch screen to measure and input thebox sizes
| model | 5012AFS |
| rigid box size Lenght | 65mm-500mm |
| rigid box size width | 65mm-400mm |
| rigid box size height | 12mm-120mm |
| productiongspeed | 10-25/pcs/min |
| voltage/power | AC/220V50hz/2.5kw |
| air pressure | 0.6-0.8mpa |
| dimension | 1980*1300*2000mm |
| weight | 1300kg |
